How voice assistants work
Demystifying your virtual assistant
At 6pm, I pack my laptop in my bag and walk in the long, silent, and empty corridors of the office. Since the pandemic started, I’ve been one of the few who often comes to the building. Right when I reach the exit, I realize that I have not turned off the lights. The light switch is inconveniently located in the middle of the office. So I say: “Alexa, turn off the lights.” At the distance, I see the circular blue light pulsating, then the lights go off. I leave for the day.
The office
This is nothing short of science fiction, yet here I am talking to a computer powered by artificial intelligence. Alexa, Siri, or the nameless assistants are impressive. They sit quietly in the background and await our instructions. They are not as sophisticated as Samantha, the artificial intelligence in the movie “Her”. They can’t hold a natural conversation, though they can be witty and can even tell jokes.
In this post, I would like to explore how these smart assistants work and how they use AI in the pipeline to complete these tasks for us.
The name
Siri, Alexa, and the others are often referred to as voice assistants. But they go by other names such as smart assistants, smart speakers, or the oldest term and most accurate term, virtual assistant.
What they describe is a device or digital service that you can give a voice command to. Since we are human and tend to anthropomorphize everything, we try to have a conversation with these devices. In this article, we will not address conversation because it is out of scope. However, we will explain how AI can extract intent out of a voice command. It all starts with the trigger word.

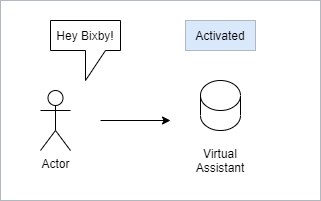

The Trigger
In a crowded room, if you want to address a person you have to call them by name. If you just start talking to them before getting their attention, they might hear you but won’t listen to you. There is too much noise, so they’ll assume you are talking to someone else.
It’s the same thing for virtual assistants. They can’t possibly listen to everything being said. If they were always listening, they might hear something that sounds like a command and start executing it. Instead, they only try to listen for the trigger phrase.
This is where we have our first interaction with AI. More specifically, Machine learning. Companies like Google create a training dataset with thousands or more recordings of the trigger phrase. With enough data, they build a model using that dataset and use a classifier to analyze your voice. The classifier takes a sample recording, let’s say 2 or 3 seconds, then processes it to see if it contains the trigger phrase. This is what happens when your device is idle. It is quietly classifying sample recordings.
Because the device has to respond immediately, the processing is generally done locally on the device, not over the internet. When the trigger word is detected, the device is activated. On a Google device you’ll see the rainbow lights turn on. Now, the device is recording your command.

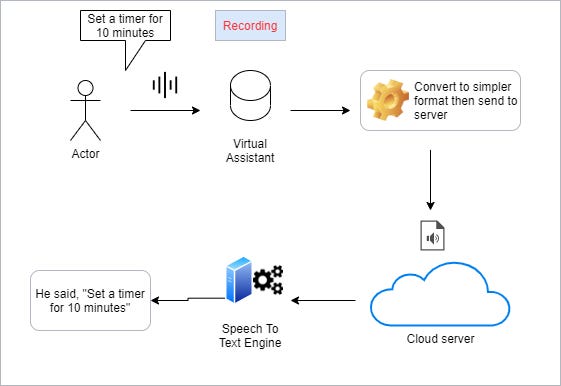

Speech to Text
Audio is complicated. It is long. It is noisy. It consumes a lot of resources. Rather than have a computer try to understand audio, it is more efficient to work with text.
When the device detects a long enough pause after your command, it stops the recording then starts processing. It converts the audio into a more efficient format by constraining it to the human voice spectrum. It is compressed then sent to the company’s servers for further processing. This is how it happens in general. But a company like Google in some cases uses an on-device speech-to-text engine (video) to convert the audio to text.
Let’s imagine that the command is “Set a timer for 10 minutes.” Once the speech to text engine transforms it to text, the next step is to understand what it means. For that we need to classify it one more time.
Classification
To train a computer to recognize cats, you feed a classifier with thousands of cat pictures. To train a computer to recognize the intent of a message, you feed it with thousands of messages and label them with the intent. For a timer, you can provide these sentences to all point to the same intent.
Set my timer for 5 minutes
Set a timer to 8 minutes
create a 2 minutes timer.
Can you set a timer in 10 minutes
There are hundreds if not thousands of variations of this sentence that all mean the same thing. Training a machine learning application to label all this data as “Timer” is trivial. Virtual assistants each support a number of intents and they can be expanded to learn more as new features are added. These intents or actions, if supported, can be used to perform a task.
Depending on the type of command, the server might run the converted text over a natural language processor. This will allow it to extract parameters out of the text. For our example, since it identified the command as setting a timer, we need to know when the timer should go off. So the NLP will read the text and return “10 minutes” as the time parameter. As far as AI is concerned, this is the last time we interact with it.
Performing the task
For our example, the server will return the command “Timer” to our device and will additionally add the parameter 10 minutes to it. The device will use this info to create a timer for 10 minutes.
If the command was “turn off the lights” or a variation of it, the server will return “Turn lights off.” If the device supports the command, it will perform the task. Otherwise it will tell us it doesn’t support it.
As we add more internet connected devices to our network, those that have an integration with our virtual assistant can be connected. It is up to the developers of the device to build the integration and make some commands available. Performing the task itself doesn’t involve AI.
One of the concerns with virtual assistants is that they are recording devices that we put in our homes. What happens when someone starts listening?
Privacy
Is your device recording everything you say and sending it to mother base?
The simple answer is Yes… but it is complicated.
Continuously recording every second of the day and sending it back to the server is highly inefficient. Even large companies like Google or Amazon will be overwhelmed with the amount of data. However, these devices are still recording when in standby mode. Although, they only record a few seconds at a time to check if the trigger phrase has been uttered.
The command you speak after the trigger phrase is recorded and generally sent to the server for further processing. I say generally because there is such a thing as on-device processing. It may not be as accurate in understanding you, but it is much faster. When the data is sent to the server, you can only trust the company that says they discard the data after processing.
For example, Apple claims to only store text transcripts of your command rather than the original audio. You have to opt-in to let them keep the audio to improve Siri. Google will save the audio regardless, and claims that you can delete the data at any time.
There are two scenarios where someone can listen to your recording. When you send a voice command and the device fails to recognize it, it will use this recording for training. A real person will listen to the recording and manually label the data to improve the machine learning model. Law enforcement can also request this data from companies with the proper warrants.
Do note that every company tracks how you use the device. Metrics like GPS, time of day, how many times you use the device, how often you use a command, which 3rd party app you interact with, etc.
At the end of the day, it’s all about trust. You just have to believe that companies do what they claim. When the data is sent to their servers, there is no reasonable way for us to check how it is handled. Personally, I do not use virtual assistants for this very reason.
Before we understand how a virtual assistant works, it all seems like science fiction. But as we look closer, we can see a few technologies at work. Speech to text engines, machine learning classifiers, NLP and the internet. It’s a clever integration of these technologies. As developers can add new machine learning models and new features, the smart assistants becomes increasingly more useful.
Conversation still remains out of reach. It’s not because it is impossible, but mostly because it’s not as useful as it seems. It’s similar to how in the early 1900s, people imagined that in the 21st century we will all have our personal flying cars. Imagine if we had thousands of helicopters in the air right now.
By the way, what does it mean if an AI tells you it’s favorite food is pizza? We will explore it in a future article.
